The OxiMax MC Series
The OxiMax MC Series is designed to produce Sodium Hypochlorite (NaOCl) from seawater or water with salinities > 4 g/l.
Description
The OxiMax MC Series Seawater Electrochlorination System produces high-quality sodium hypochlorite directly from seawater, delivering safe, cost-effective and environmentally responsible biofouling control for industrial cooling water and seawater intake systems.
The OxiMax MC Series is designed to produce Sodium Hypochlorite (NaOCl) from seawater or water with salinities > 4 g/l. These heavy duty, high performance cells use Thermomoulded PVC casings and bipolar electrode arrangements for optimum energy efficiency, safety and NaOCl production.

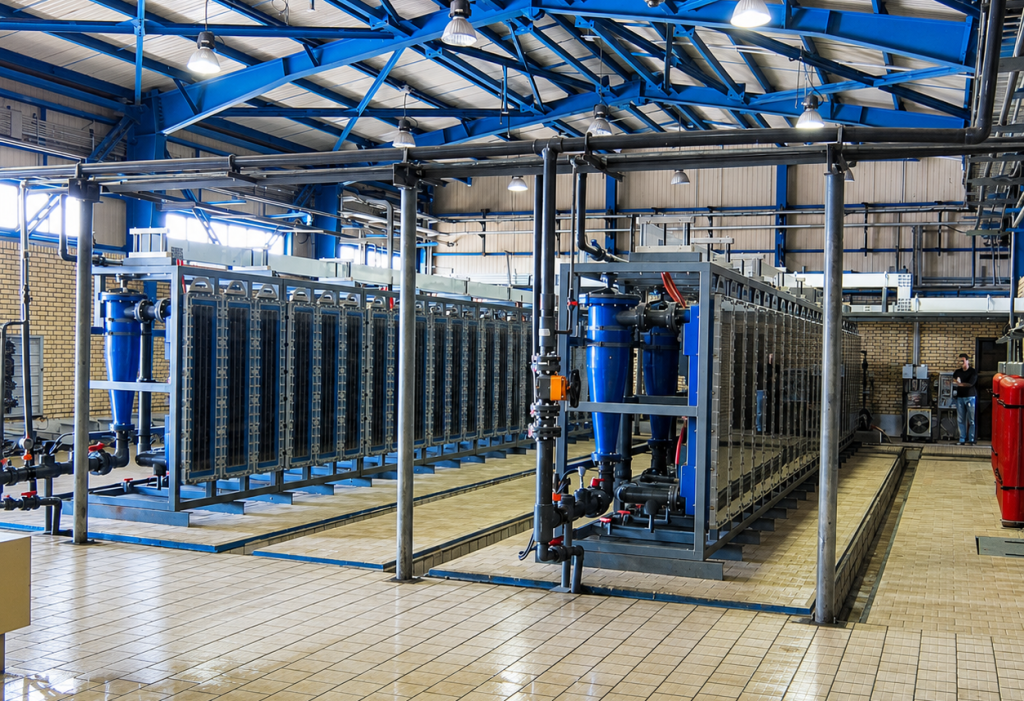

Typically, a side stream of seawater is taken from the discharge of the seawater pumps directly to the Electrochlorination Plant. This seawater is strained to 400 micron and passed into the electrolyser cells. DC power is applied to the seawater inside the cells which results in the production of Hypochlorite. The OxiMax MC Series uses staged Hydrogen removal through the electrolyser train via multiple Hydroclones, resulting in superior Hypochlorite production and energy savings. The Hydrogen flows to the Hypochlorite storage / degassing tanks where the Hydrogen is diluted to < 4% (typically < 1%) and safely purged to atmosphere. The Hypochlorite is then dosed into the seawater intake lines to prevent marine growth and biofouling of the mechanical equipment such as the cooling water pumps, the bar screens, drum screens and condensers as well as the cooling water pipelines of the power station.
Each OxiMax MC Series system is controlled by a high quality PLC with a colour HMI, for ease of control.
Typically, a side stream of seawater is taken from the discharge of the seawater pumps directly to the Electrochlorination Plant. This seawater is strained to 400 micron and passed into the electrolyser cells. DC power is applied to the seawater inside the cells which results in the production of Hypochlorite. The OxiMax MC Series uses staged Hydrogen removal through the electrolyser train via multiple Hydroclones, resulting in superior Hypochlorite production and energy savings. The Hydrogen flows to the Hypochlorite storage / degassing tanks where the Hydrogen is diluted to < 4% (typically < 1%) and safely purged to atmosphere. The Hypochlorite is then dosed into the seawater intake lines to prevent marine growth and biofouling of the mechanical equipment such as the cooling water pumps, the bar screens, drum screens and condensers as well as the cooling water pipelines of the power station.
Each OxiMax MC Series system is controlled by a high quality PLC with a colour HMI, for ease of control.
Our Products
Book an Appointment
Advantages
- See every Anode and Cathode
- Complete biofouling and marine growth control
- Cells are fully insulated – no exposed DC busbars or electrical connections for
greater personnel safety - Staged hydrogen removal for increased efficiency
- Cost effective and reliable
- Low maintenance and easy cell removal for maintenance
- Completely automatic Sodium Hypochlorite (NaOCl) production
- Safe, reliable and robust
- Modular configuration
- Forced air hydrogen gas dilution and purging
- 5 Year Warranty on electrodes
- SC12 MMO Coatings on Anodes for increased efficiency
- Integral Voltage Monitoring
- High flow velocity waterways reduce energy consumption and minimise
the need for acid cleaning. - Highest efficiency design = Lowest operating cost
- Hypochlorite outputs up to 400 kg/hr
A typical OxiMax MC Series system consists of some or all of
the following:
- Brine Saturation Tank
- Brine Pump(s)
- Fresh Water Pump(s)
- Water Softener(s)
- DC Transformer Rectifier(s)
- OxiMax MA Series Electrochlorination Cell(s)
- Control System (PLC/HMI)
- Hydrogen dilution Air Blowers
- Radar level-controlled Hypochlorite Storage Tank(s)
- Dosing Pump(s) and Dosing Control
- High Quality Instrumentation – flow, temperature, pressure, level
- Chiller(s)
- Remote Communication
OxiMax MC Series Electrochlorination System Sizing

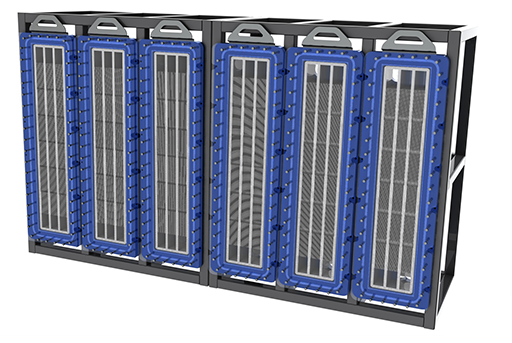

We use the MCA, MCB or MCC cells as the basic building blocks to form an entire OxiMax MC Series electrolyser train.
| OxiMax MC Series – Chlorine Required in kg/hr (per Train) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 10 | 20 | 40 | 80 | 120 | 160 | 240 | ||
| Cell Model | Output/Cell (kg/hr) | No. of Cells Required | |||||||
| MCA | 2.5 | 2 | 4 | 8 | 16 | N/A | N/A | N/A | N/A |
| MCB | 6 | 1 | 2 | 4 | 7 | 14 | N/A | N/A | N/A |
| MCC | 15 | N/A | 1 | 2 | 3 | 6 | 8 | 11 | 16 |
Typical Applications
- Drinking water treatment
- Wastewater treatment
- Cooling towers
- Food and beverage processing
- Mining operations
- Industrial process water
- Commercial buildings
- Irrigation systems
- Swimming pools and aquatic centres
- Marine and offshore facilities
Why Choose Electrochlorination?
Electrochlorination provides the benefits of chlorine disinfection without the risks associated with transporting and storing hazardous chemicals. By generating sodium hypochlorite on-site from simple raw materials, organisations can improve safety, reduce operating costs, increase reliability, and support more sustainable water treatment operations.
| OxiMax Model | MM10 | MM25 | MM50 | MM100 | MM150 | MM250 | MM500 |
|---|---|---|---|---|---|---|---|
| Rated Hypo Output (g/hr) | 10 | 25 | 50 | 100 | 150 | 250 | 500 |
| Hypo Strength Range (g/L) | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 |
| Quantity of Water Treated to 2 ppm (litres/hr) | 5,000 | 12,500 | 25,000 | 50,000 | 75,000 | 125,000 | 250,000 |
| Control Module | |||||||
| Brine Pump | Peristaltic | Peristaltic | Peristaltic | Peristaltic | Peristaltic | Metering Pump | Metering Pump |
| Water Pump / Flow Control | Peristaltic | Peristaltic | Peristaltic | Maric Valve | Maric Valve | Maric Valve | Maric Valve |
| Electrolyser Module | |||||||
| Electrolyser Cell Type | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning |
| Supply AC Voltage / Frequency | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz |
| Recommended Connected Amps | 10 | 10 | 10 | 10 | 10 | 10 | 20 |
| Power Consumption (kWh DC) | 0.08 | 0.17 | 0.34 | 0.70 | 1.00 | 1.61 | 3.12 |
| Power Consumption (AC kWh/kg Cl2) | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 |
| Salt Saturator | |||||||
| Recommended Volume Salt Saturator (litres) | 50 | 50 | 50 | 250 | 250 | 250 | 500 |
| Salt Capacity (kg) | 38 | 38 | 38 | 188 | 188 | 188 | 375 |
| Days Operation at 50% Duty Cycle | 84.5 | 33.8 | 16.9 | 42.2 | 28.2 | 16.9 | 16.9 |
| Salt Consumption (kg salt/kg Cl2) | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 |
| Hypo Storage Tank | |||||||
| Recommended Volume Storage Tank (litres) | 60 | 60 | 60 | 250 | 250 | 250 | 500 |
| Volume Hydrogen Produced (litres/hr) | 6.97 | 17.42 | 34.85 | 69.70 | 104.55 | 174.24 | 348.5 |
| Hydrogen Fan Fitted | Optional | Optional | Optional | Yes | Yes | Yes | Yes |
| Machine Dimensions (L × W × H) (mm) | 380 × 335 × 622 | 380 × 335 × 622 | 380 × 335 × 622 | 610 × 335 × 675 | 610 × 335 × 675 | 610 × 335 × 675 | 610 × 335 × 675 |
| Machine Weight (kg) | 22 | 25 | 28 | 38 | 42 | 45 | 60 |
Data sheets for MM750–MM2000 are available on request.
