MMO Anodes & Electrochlorination Services – Extending the Life of Your Critical Assets
Description
When performance matters, trust the experts who have been designing, manufacturing and refurbishing electrochlorination systems and Mixed Metal Oxide (MMO) anodes for decades. Water Engineers and Anode Technology have manufactured more than 20,000 m² of premium MMO-coated titanium anodes for seawater, freshwater and industrial applications, delivering exceptional reliability, efficiency and long service life.
Whether you need replacement MMO anodes, cathodic protection systems, cell recoating, complete electrolyser refurbishment or specialist consulting, our experienced engineering team provides cost-effective solutions that restore performance and maximise the lifespan of your equipment.
Unlike replacing an entire electrochlorination system, our refurbishment and recoating services can return existing cells to near-new performance—often exceeding the efficiency of the original equipment. We refurbish electrochlorination systems from virtually any manufacturer, helping customers reduce capital expenditure, minimise downtime and improve operational reliability. Recoating is typically the ideal solution for systems up to around 15 years old, and refurbished cells are backed by a 5-year warranty.
Our Products
Book an Appointment
Why Choose Water Engineers?
- Australian manufacturer of premium MMO-coated titanium anodes
- Over 40 years of electrochemical engineering expertise
- Refurbishment and recoating for virtually any electrochlorination system
- Extend equipment life while reducing replacement costs
- Fast turnaround to minimise plant downtime
- Custom cathodic protection anodes for marine and industrial applications
- Advanced engineering, testing and performance analysis
- 5-year warranty on recoated and refurbished cells
- Global service and technical support
Don’t replace your electrochlorination system before speaking to our team. From replacement MMO anodes and cathodic protection solutions to complete system refurbishment and performance optimisation, Water Engineers delivers engineering expertise that keeps your water treatment systems operating at peak efficiency for years to come.
Application of the CP Anodes
| Electrolyte | Recommended current output (A/m²) |
Designed lifetime (years) |
|---|---|---|
| Seawater | 300–1000 | 5–30 |
| Brackish water | 50–300 | 5–30 |
| Freshwater | 50–150 | 5–30 |
| Boiler feed water | 50–150 | 5–30 |
| Soil (backfill) | 50–150 | 5–30 |
| Mud | 50–100 | 5–30 |
Types of Anodes
| Types | Diameter (mm) |
Length (mm) |
Width (mm) |
Thickness (mm) |
Remarks |
|---|---|---|---|---|---|
| Sheets | up to 1500 | up to 1500 | up to 10 | any shape possible | |
| Tubes | 3 - 100 | up to 5000 | connections optional | ||
| Rod | up to 5000 | connections optional | |||
| Wire | 1 - 4 | up to 500 meters | coils or straight | ||
| Mesh | up to 1500 | up to 1500 | 1 - 4 | flat or raised |
| OxiMax Model | MM10 | MM25 | MM50 | MM100 | MM150 | MM250 | MM500 |
|---|---|---|---|---|---|---|---|
| Rated Hypo Output (g/hr) | 10 | 25 | 50 | 100 | 150 | 250 | 500 |
| Hypo Strength Range (g/L) | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 | 4.5–7.5 |
| Quantity of Water Treated to 2 ppm (litres/hr) | 5,000 | 12,500 | 25,000 | 50,000 | 75,000 | 125,000 | 250,000 |
| Control Module | |||||||
| Brine Pump | Peristaltic | Peristaltic | Peristaltic | Peristaltic | Peristaltic | Metering Pump | Metering Pump |
| Water Pump / Flow Control | Peristaltic | Peristaltic | Peristaltic | Maric Valve | Maric Valve | Maric Valve | Maric Valve |
| Electrolyser Module | |||||||
| Electrolyser Cell Type | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning | Patented Self Cleaning |
| Supply AC Voltage / Frequency | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz | 110–268 V / 50–60 Hz |
| Recommended Connected Amps | 10 | 10 | 10 | 10 | 10 | 10 | 20 |
| Power Consumption (kWh DC) | 0.08 | 0.17 | 0.34 | 0.70 | 1.00 | 1.61 | 3.12 |
| Power Consumption (AC kWh/kg Cl2) | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 |
| Salt Saturator | |||||||
| Recommended Volume Salt Saturator (litres) | 50 | 50 | 50 | 250 | 250 | 250 | 500 |
| Salt Capacity (kg) | 38 | 38 | 38 | 188 | 188 | 188 | 375 |
| Days Operation at 50% Duty Cycle | 84.5 | 33.8 | 16.9 | 42.2 | 28.2 | 16.9 | 16.9 |
| Salt Consumption (kg salt/kg Cl2) | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 |
| Hypo Storage Tank | |||||||
| Recommended Volume Storage Tank (litres) | 60 | 60 | 60 | 250 | 250 | 250 | 500 |
| Volume Hydrogen Produced (litres/hr) | 6.97 | 17.42 | 34.85 | 69.70 | 104.55 | 174.24 | 348.5 |
| Hydrogen Fan Fitted | Optional | Optional | Optional | Yes | Yes | Yes | Yes |
| Machine Dimensions (L × W × H) (mm) | 380 × 335 × 622 | 380 × 335 × 622 | 380 × 335 × 622 | 610 × 335 × 675 | 610 × 335 × 675 | 610 × 335 × 675 | 610 × 335 × 675 |
| Machine Weight (kg) | 22 | 25 | 28 | 38 | 42 | 45 | 60 |
Data sheets for MM750–MM2000 are available on request.
Talk to us:
+(61) 7 55716 690
Looking for a smarter, more reliable water treatment solution?
Need Help Selecting the Right Water Treatment Solution?
Our engineers can assess your application and recommend the most effective treatment technology for your water quality challenges.
Need more help?
Have Complex Questions? Let’s Explore Them Together
Customer Support
We provide ongoing technical support and maintenance services to ensure your water treatment system continues to perform at its best.
Ticket Support
Our dedicated support team provides fast and efficient ticket-based assistance to help resolve issues and minimise downtime.
Free Insight
We offer free expert insights and advice to help you identify the most effective water treatment solution for your application.
common Questions
Explore Common Questions About Oximax products.
What industries do Water Engineers Australia service?
We provide water treatment solutions for a wide range of industries, including municipal water authorities, mining, agriculture, food and beverage processing, manufacturing, healthcare, commercial facilities, and wastewater treatment plants.
What is the Oximax range of water treatment technologies?
The Oximax range includes advanced water treatment systems such as Oximax HyperOx™ Advanced Oxidation, Oximax Chlorine Dioxide™, and Oximax Electrochlorination™, each designed to address specific water treatment and disinfection challenges.
How do I know which water treatment technology is right for my application?
Our experienced engineers assess your water quality, treatment objectives, operational requirements, and compliance obligations to recommend the most effective and cost-efficient solution.

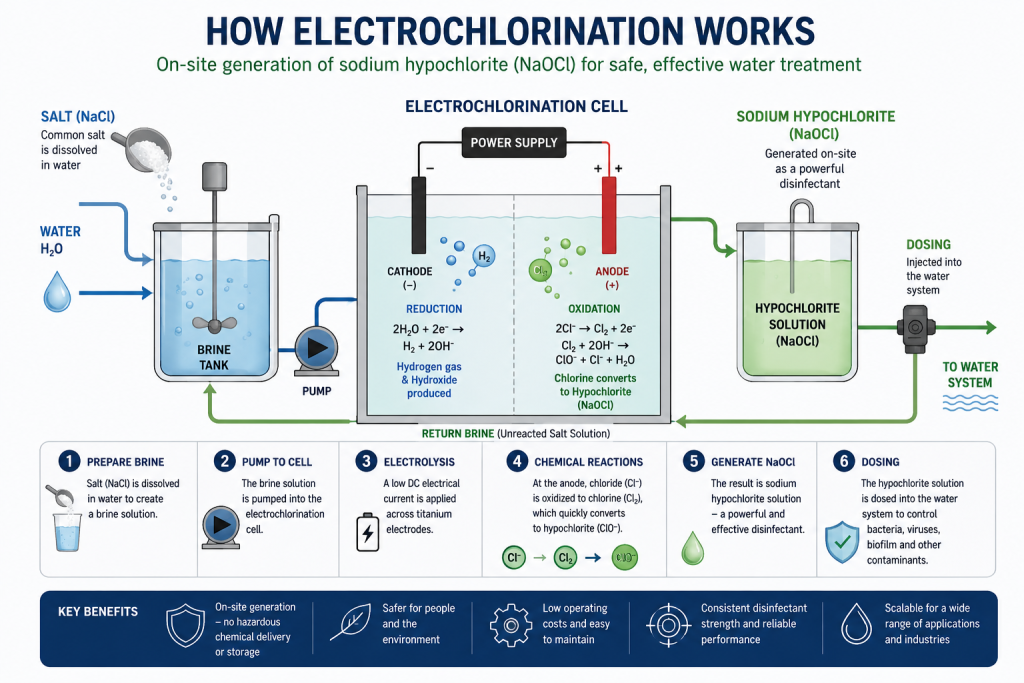

What is Electrochlorination?
Electrochlorination is a process that generates sodium hypochlorite (chlorine) on-site using salt, water, and electricity. It eliminates the need to transport and store hazardous chlorine chemicals while providing effective water disinfection.
What are the benefits of Chlorine Dioxide?
Chlorine Dioxide is a powerful disinfectant that effectively controls bacteria, viruses, Legionella, biofilm, taste, and odour issues while producing fewer harmful by-products than traditional chlorine treatments.
What is Advanced Oxidation Technology?
Advanced Oxidation Technology uses highly reactive oxidants to break down contaminants, remove organic compounds, improve water quality, and enhance disinfection performance in challenging water treatment applications.
Can Oximax systems be customised?
Yes. Every Oximax system can be tailored to suit your specific water treatment requirements, flow rates, site conditions, automation needs, and operational objectives.
Are your systems suitable for remote locations?
Yes. Our systems are designed for reliability and can be configured with remote monitoring and automation features, making them ideal for remote communities, mining operations, agricultural sites, and regional facilities.
Do you provide installation and commissioning services?
Yes. We provide complete project delivery, including system design, manufacturing, installation, commissioning, training, and ongoing technical support.
Can your systems help meet regulatory compliance requirements?
Yes. Our solutions are designed to assist customers in achieving water quality standards, environmental compliance requirements, and operational performance objectives.
Do you offer maintenance and support services?
Yes. We offer preventative maintenance programs, technical support, troubleshooting, spare parts, and ongoing servicing to ensure your system continues to operate at peak performance.
How can I get a quote?
Simply contact our team with details about your application, water source, treatment requirements, and site location. We will assess your needs and provide a tailored solution and quotation.
